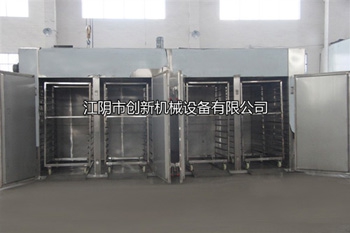

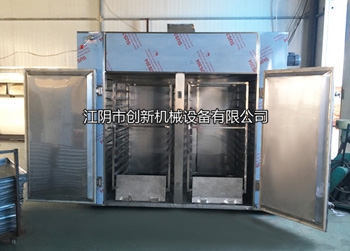

CT-C series hot air circulation oven set the length of similar products at home and abroad, is designed to upgrade several times to reach international advanced level, it is to steam or electricity as the heat source, through the heat exchanger heating by fan forced circulation air. Laminar flow through the hot air drying and the material for heat transfer and evaporation of moisture away materials. According to different requirements of material and drying process of different states, can regulate the amount of air discharge volume and the ratio of circulation to achieve the drying rate increased with the dual purpose of heat utilization, this is the advantages of hot air circulation oven.

To minimize the temperature difference inside the points, in addition to the cycle of relying on forced air convection oven is still outside of the right and left with a sub-style device can be adjusted to regulate the sub-blade angle to the wind before and after the point of the upper and lower box temperature line.

Temperature inside the temperature control device can set a constant value in the event of overrun, it will automatically light alarm. Hot air circle oven is intermittent drying rack, large drying equipment versatility, suitable for pharmaceutical, chemical, food, light industry, electronics industry, materials, finished products than temperature, curing, and even bacteria unit operation. Such as: raw material medicine, Chinese herbs, Chinese Herbal Medicine, powder, granule, powder, pill, pigments, dyes, spices, bottles, dehydrated vegetables, food, plastic resin, electric elements, baking and so on.

Technical parameters：

No.	Type	YY0026-90 industry standard models	Technical parameters										Fitting			Total weight(kg)
			Steam area ㎡	Effective volume of M3	Each drying capacity kg / batch	area ㎡	Steam cons- umption kg / h	Electric heating power kw	Fan Air Flow m3 / h	Fan Power kw	Box tem-perature  ℃	Dim ensions(L×W×H)mm	Should be equipped with a drying vehicles (vehicles）	Should be equipped with a drying tray (Peace)	Tem-perature controlled box
1	CT-O	RXH- 7B	7.1	1.3	60	15	15	6-9	1417	1.1	±1	1050×1600×2100	1	24	Nix	420
2	CTI （Single Do）	RXH-14-A	14.1	2.5	120	20	20	15	1417	1.1	±3	1050×2700×2430	2	48	Nix	840
3	CTI （Double Door）	RXH-14-B	14.1	2.6	120	23	20	14	1417	1.1	±2	2430×1200×2430	2	48	Nix	920
4	CT-Ⅱ	RXH-27-B	28.3	4.9	240	48	40	30	5230	1.1	±2	2430×2160×2625	4	96	Nix	1580
5	CT-Ⅲ	RXH-41-B	42.4	7.4	360	72	60	45	9800	2.2	±2	3420×2160×2670	6	144	Nix	1900
6	CT-Ⅳ	RXH-54-B	56.5	10.3	480	96	80	60	9800	2.2	±2	4360×2160×2670	8	192	Nix	2300
7	CT-C-O	RXH-7-C	7.1	1.3	60	15	15	6-9	4510	0.45	±1	1410×1200×2140	1	24	Have	480
8	CT-C-I	RXH-14-C	14.1	2.6	120	23	20	15	4510	0.45	±2	2250×1200×2160	2	48	Have	1080
9	CT-C-Ⅱ	RXH-27-C	28.3	4.9	240	48	40	30	9020	0.452	±2	2250×2160×2160	4	96	Have	1520
10	CT-C-Ⅲ	RXH-41-C	42.4	7.4	360	72	60	45	13530	0.453	±2	3290×2160×2200	6	144	Have	1960
11	CT-C-Ⅳ	RXH-54-C	56.5	10.3	480	96	80	60	18040	0.454	±2	4360×2160×2270	8	192	Have	2400

Cabinet wall materials are: A3 steel, stainless steel; wall materials: galvanized plate, aluminum, stainless steel; bake vehicle materials are: A3 steel, stainless steel; baking tray materials: aluminum alloy, stainless steel, galvanized sheet
